Connect
A bumper that connects directly to an existing front weight block, with hinged side panels and full LED lighting but no storage box.
- In tractor colour + your logo
- Full-LED lighting
- ECE-104 reflection
- Delivery 3–4 weeks
The Connect bumper couples directly to a front weight block, adding hinged side panels, shear bolt protection and full LED lighting. It is the only model without a storage box.
Connect with front weight
Adjustable side panels
Optimally adjustable for every tractor. It provides precise width indication, shielded front + side, and improved maneuverability.
Shear bolt protection
Prevents damage when reversing into an obstacle.
LED
Outline marker, contour lights and direction indicators, all LED and according to legislation.
Warning panels
In the correct size and reflection class ECE-104.
Receive a 10% discount on the gross prices + free calender when ordering via the webshop
The discount has already been calculated in the price
Shipment costs:
Price excluding shipment, click here for shipping costs.
We have an importer in the folowing countrys:
Prices not valid for the countrys below. Please contact our importer via the link below
- Ireland -> Bailey Machiney Sales
- Flanders -> Optimitrac
- Denmark -> JVL Maskinserverice
How will the bumper be delivered and how to assemble?
Will be delivered on a EUR pallet. You only have to assemble the side panels, see:
VAT in EU:
For EU: 0% with a valid VAT number. You can check the VAT number here.
You can fill in your VAT number on the check out page. VAT will be 0%
UK:
To do business directly, you need a valid company EORI number, you can check EORI nr.. You can find more information about EORI number here. If you do not have a EORI number, please find a UK dealer here or contact your local dealer.
Stickerdesign with own logo:
If you have chosen your own logo, upload your logo when ordering. After we received the logo, we make an example for the layout and send it via e-mail. After approval, production is started. So no surprises afterwards.
Shipment costs
Price shipment to Ireland -> Please contact our dealer Bailey Machiney Sales
Price shipment to CZ, SK, : 145 €
Price shipment to UK or other locations: Please contact us via Email
Delivery time:
2.5 weeks after ordering.
Payment:
Only possible via Proforma Invoice
Return policy:
Only products in the original packaging can be returned. Click here for more information.
How to adjust in the correct position, you can find in our user manual:
Optional without extra costs:
- Long side panels, width adjustment 2,5 till 2,9 meter

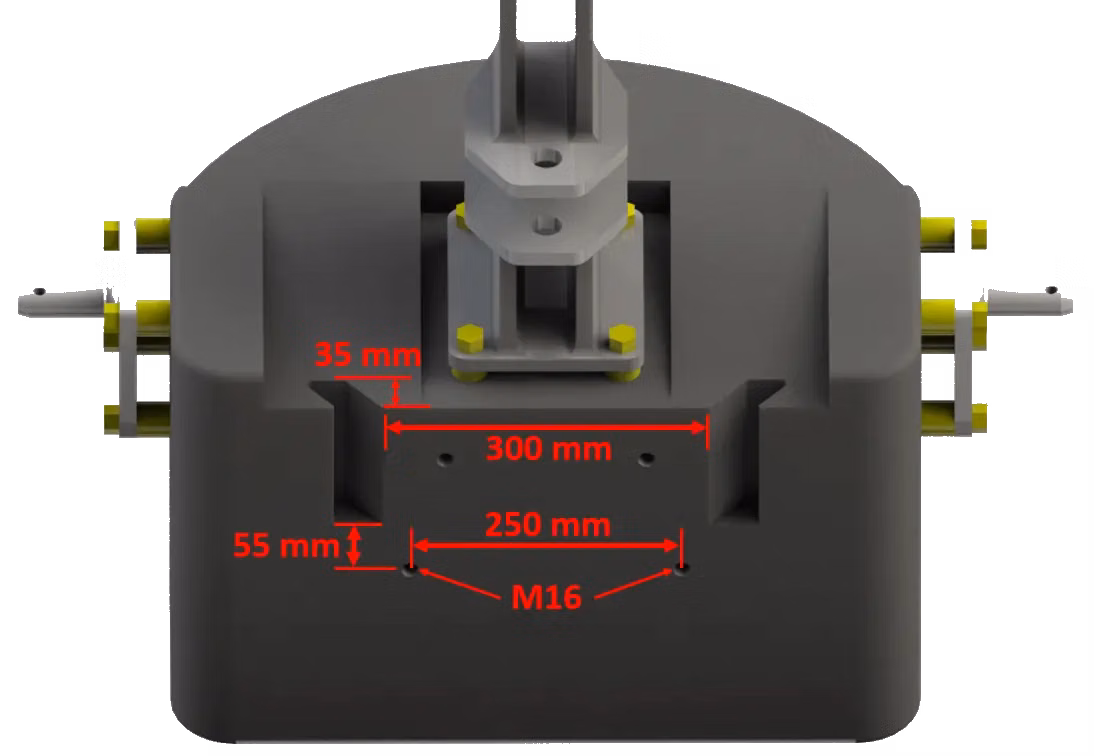

Here you can find the dimensions of the frontweight to fit a Connect bumper:
See below for Frequently Asked Questions Connect
Standard features
Connect with front weight
Couples directly to a front weight block.
Adjustable side panels
Optimally adjustable for every tractor. It provides precise width indication, shielded front + side, and improved maneuverability.
Shear bolt protection
Prevents damage when reversing into an obstacle.
LED
Outline marker, contour lights and direction indicators, all LED and according to legislation.
Warning panels
In the correct size and reflection class ECE-104.
What customers say
The Connect gives the front axle the weight it needed, without making the tractor any longer than it has to be.
On the front linkage in an afternoon, and the LED lighting is a real step up on what we had.
Exactly the tractor colour we asked for, and the underrun protection finally puts us in order.
All our models
See every version in 3D — pick your model and configure it.
